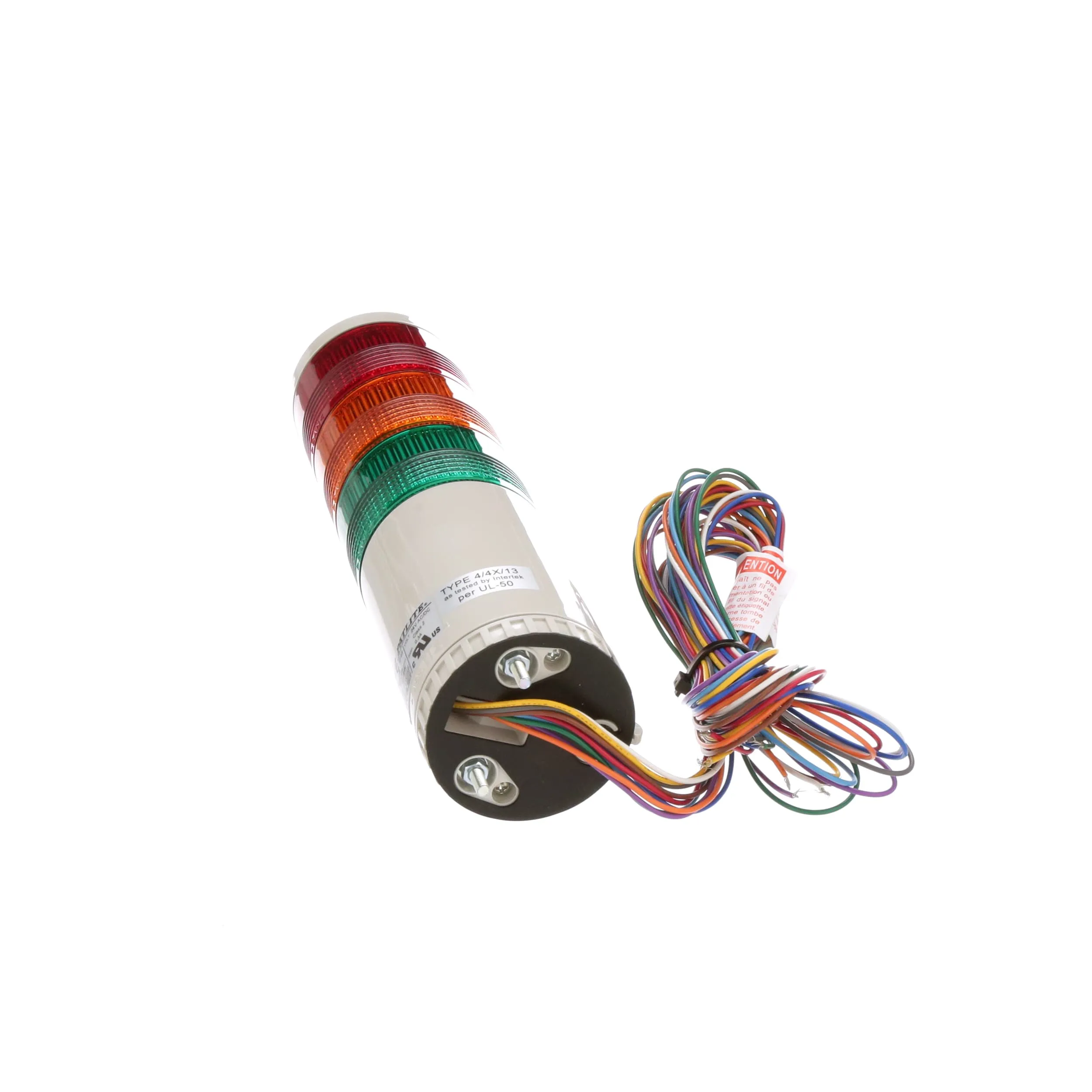

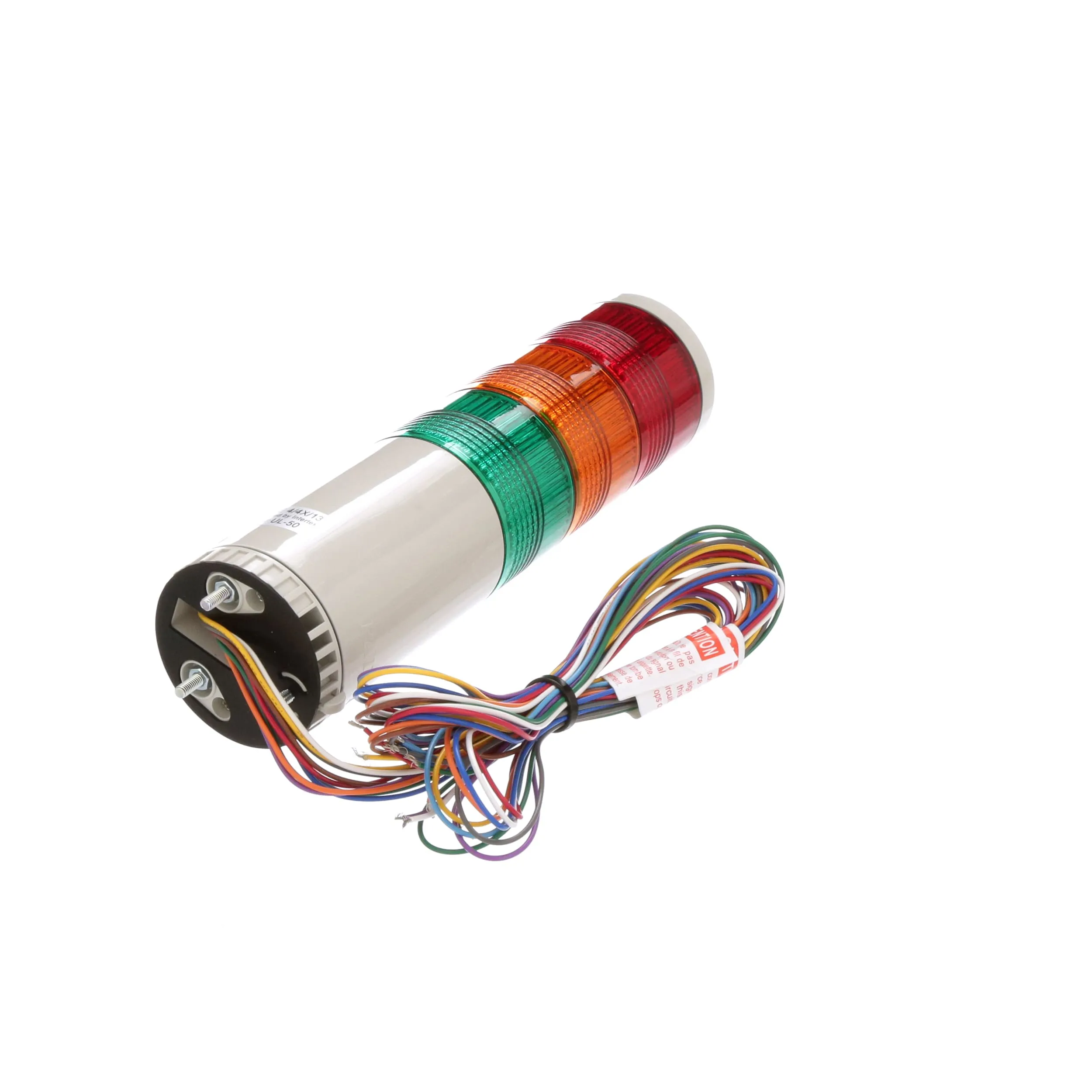

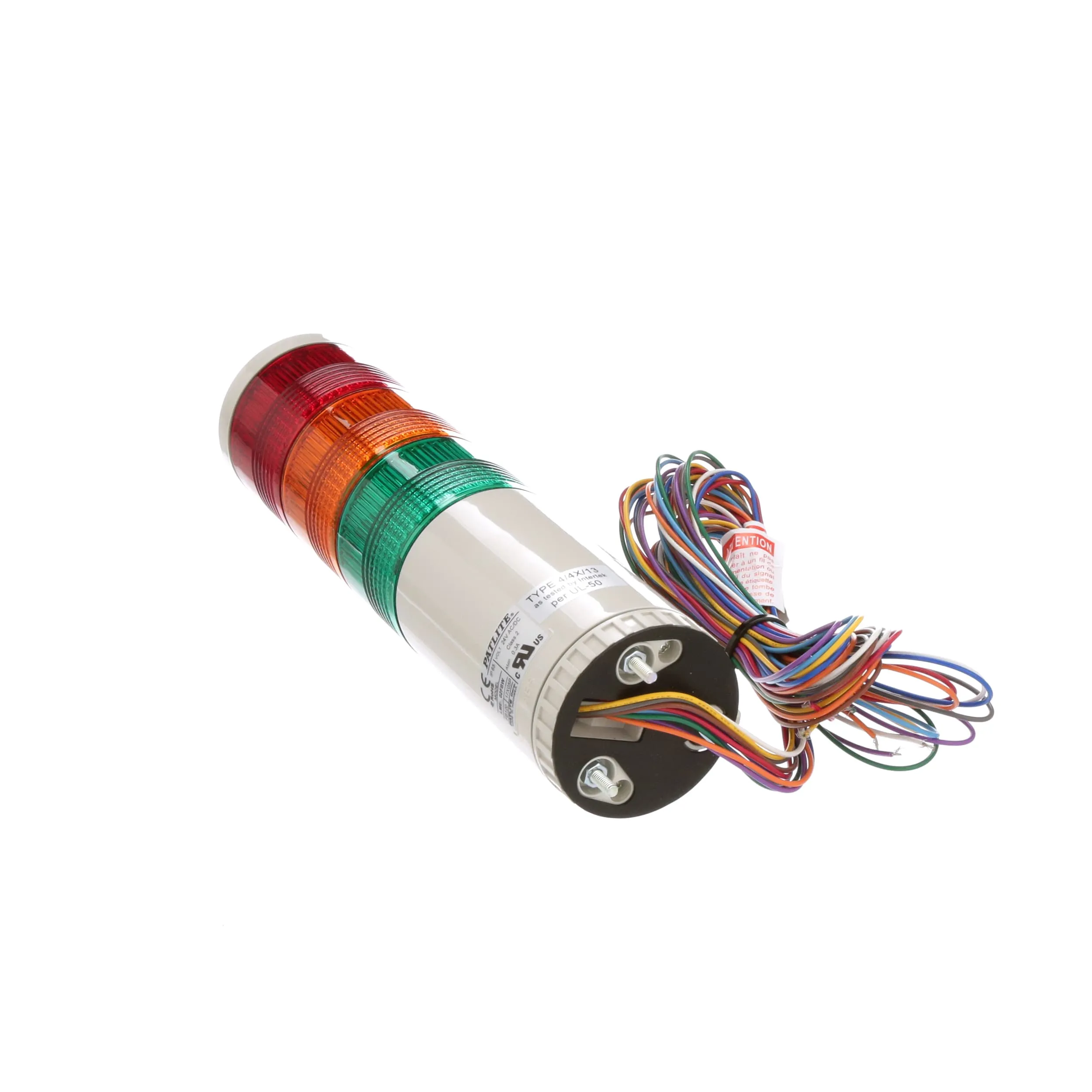

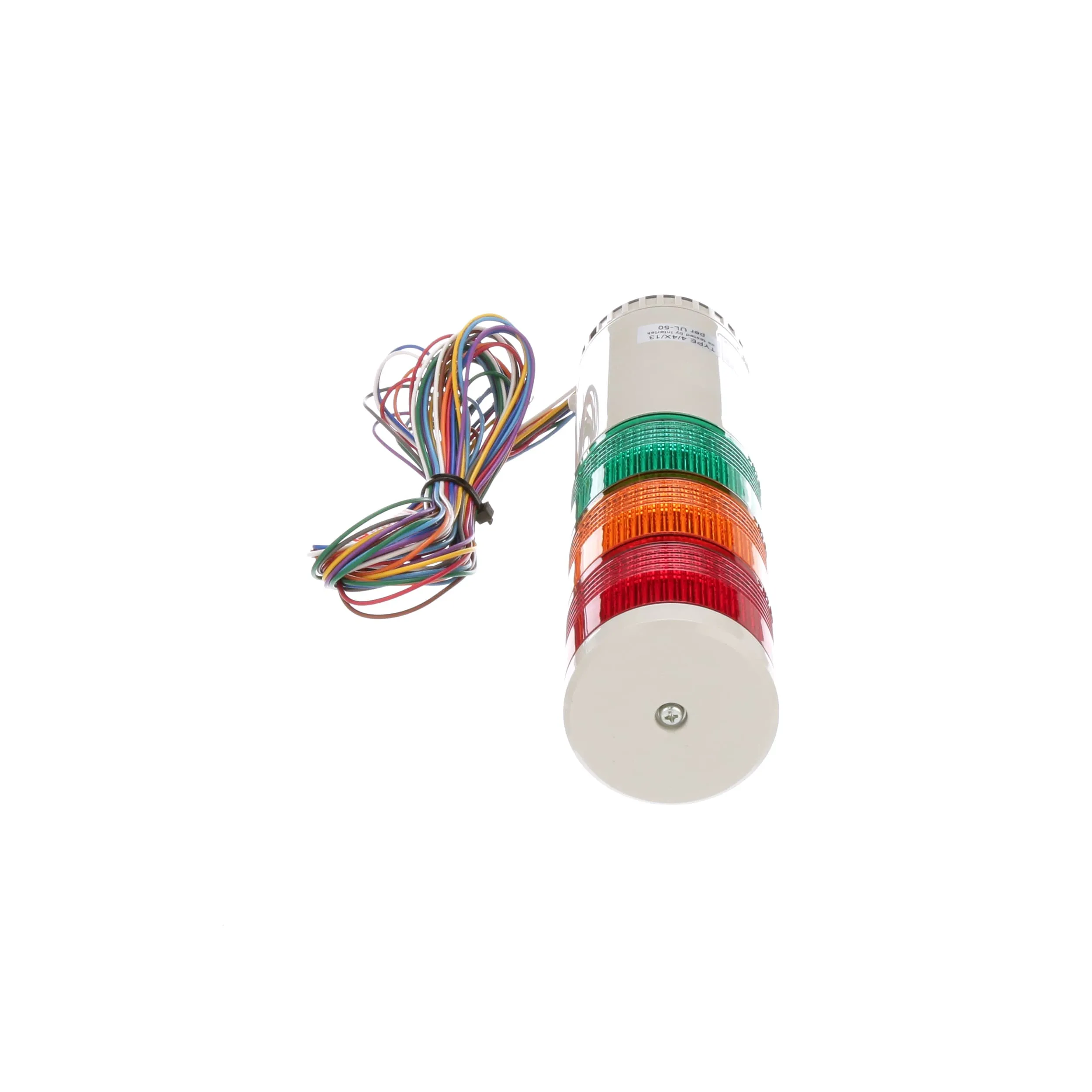

Name: Patlite LME-302FBW-RYG FB120
SKU: 194179

Product Attribute	Attribute Value
Alternate Mfr Part Number	LME-302FBW-RYG
Bulb Type	LED
Color	Green ; Red ; Yellow
Connection Type	Leadwires
Current Consumption	29.1 (Green), 50 (Buzzer), 65.5 (Amber), 65.5 (Red) mA
Decibel Range	70 to 90 dB
Decibels at 1 Meter	90 dB
Diameter, Base	60 mm
Dimensions	60mm Dia. x 232mm H
Enclosure Rating	IP54
Height	9.15" (232.4mm)
IP Rating	IP54
Lens Color	Amber ; Green ; Red
Minimum Operating Temperature	-30 °C
Mounting Style	Panel Mount
Number of Levels	3
Primary Type	Tower
Product Header	LME Series Continuous/Flashing/Alarm Visual Warning Device
Series
Size	60 mm
Special Features	Dual Reflection System, Hybrid Prism Cut Lens, Impact & Heat Resistant Body, Impact Resistant Lens
Supply Voltage	24 VAC/VDC
Temperature Range	-30 to 60°C
Temperature, Opening, Maximum	60 °C
Type	Continuous/Flashing

Overview

The LME 60 mm diameter light tower series is interchangeable and stackable. The units are completely pre-wired and pre-assembled for easy installation.

IP65 Environment Protection, NEMA-Type 4, 4x and 13 Rated (Excluding LME-L and LME-FBL)

Ultra Bright LEDs

Fast and Easy Assembly

Aluminum Pole, Steel Pole and Direct Mount Versions

Available in 24 VAC/VDC and 120 VAC Versions

FB Types Include Two Selectable, Single-Tone Intermittent Alarms with Adjustable Volume to 90 dB (at 1 m)

Colors Available: Red, Yellow, Green, Blue and Clear

Optional Mounting Brackets Available

CE Compliant, UL/C-UL Component Recognized
