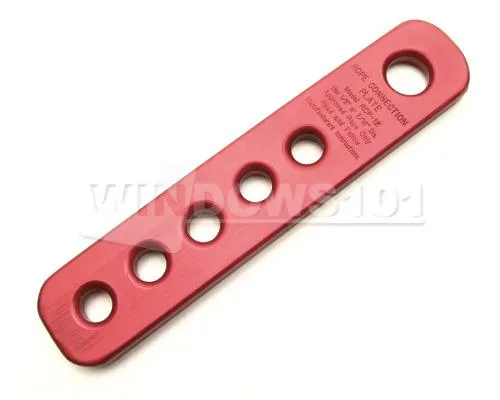

The MIO rope termination connection plate eliminates the need for knots, maintains the tensile strength of the rope, and serves as an anchorage connector. The plate provides a quick, reusable field termination. To use, connect to a suitable anchor with a locking carabiner rated at a minimum of 5,000lbs.

Features

• Quick and Easy to use.
• Maintains rope strength.
• Reusable.
• Meets OSHA and ANSI requirements.
• Capacity: 310lbs. including tools.
• Rated strength: 36 kN (≈ 8093 lbs.)

Recommended rope types

• T815: 7/16 & 1/2 dia. (11mm & 13mm) KM‐III Static Kernmantle, 7/16 & 1/2 dia. HTP (High Tenacity Polyester), 7/16 & 1/2 dia. EZ Bend and Max Wear, 7/16 & 1/2 dia. Double Braided STA‐SET.
• T816: 5/8 & 3/4 dia. (16mm & 19mm) 3‐strand polyester rope. 5/8 & 3/4 dia. Kernmantle New England Ropes, 5/8 & 3/4 dia. Kernmantle Sterling Ropes.
