| Product Attribute | Attribute Value |
|---|---|
| Current Rating | 0.062 A |
| Current, Continuous | 0.062 A |
| Current, Leakage | 25 mA |
| Current, Surge | 0.095 A |
| Decibel Range | 98 to 106 dB |
| Decibels at 1 Meter | 98 dB |
| Diameter | 102 mm |
| Dimensions | 2-13/32" L x 4-1/2" Dia. |
| Features | PLC Compatible, Dust Proof, Shock Proof |
| Frequency | 60 Hz |
| Frequency, Operating | 60 Hz |
| Mounting Style | Surface Mount |
| Operation | Continuous |
| Power Rating | 7.4 VA |
| Primary Type | Bell |
| Product Header | Adaptabel® AC Vibrating Bell |
| Series | |
| Sound Level | 85 to 95 dB |
| Special Features | Completely Assembled, Corrosion Resistant Heat Flowed Epoxy Finish, Die Cast Housing, FM Approved, Mounts Directly on Surface or Electrical Box, Self-Compensating Solenoid Plunger |
| Standards | UL Listed, FM Listed, CSFM Certified |
| Supply Voltage | 120 VAC |
| Tone | Continuous |
| Type | Vibrating |
| UPC Code | 0782640235003 |
| Voltage, Operating | 120 VAC |
Overview

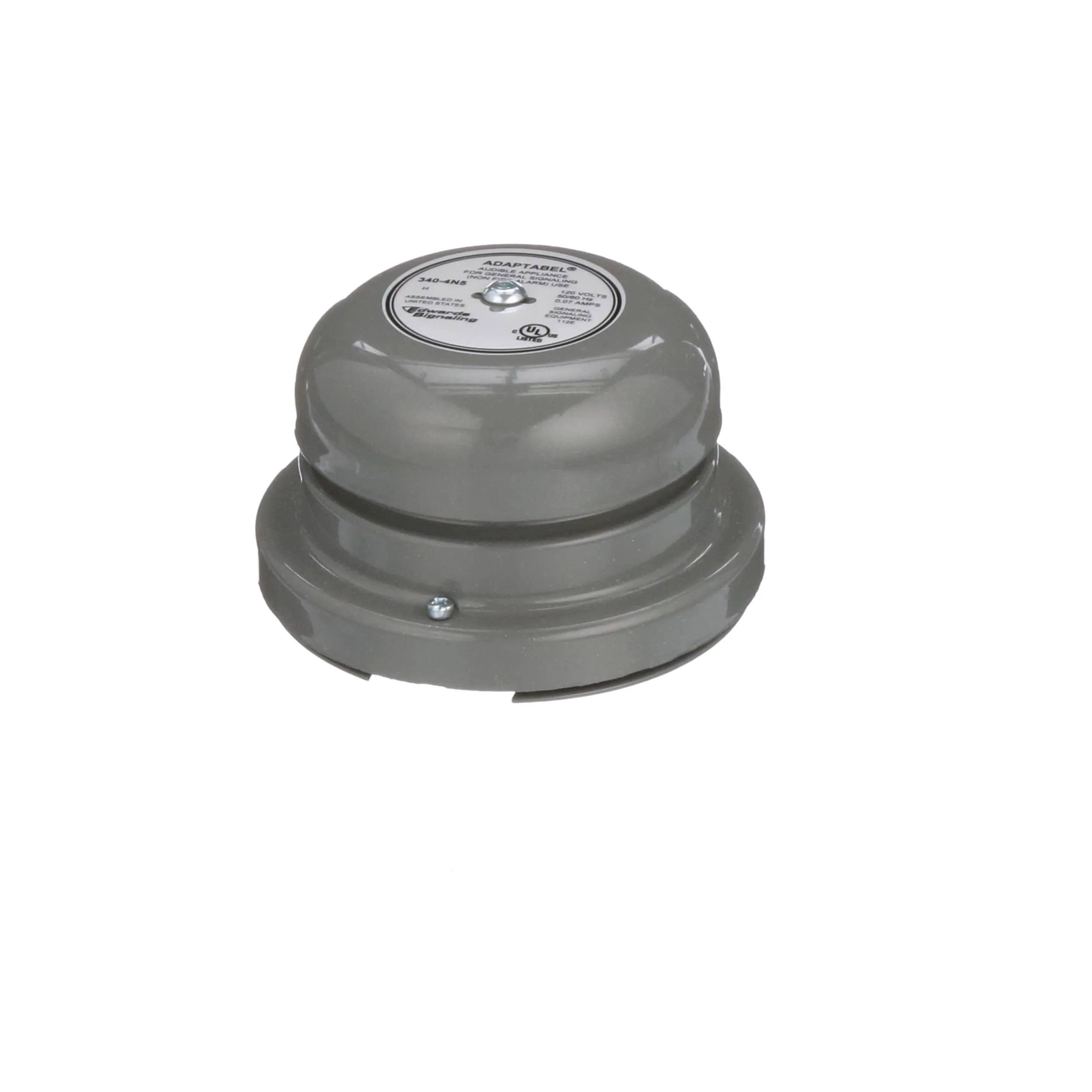

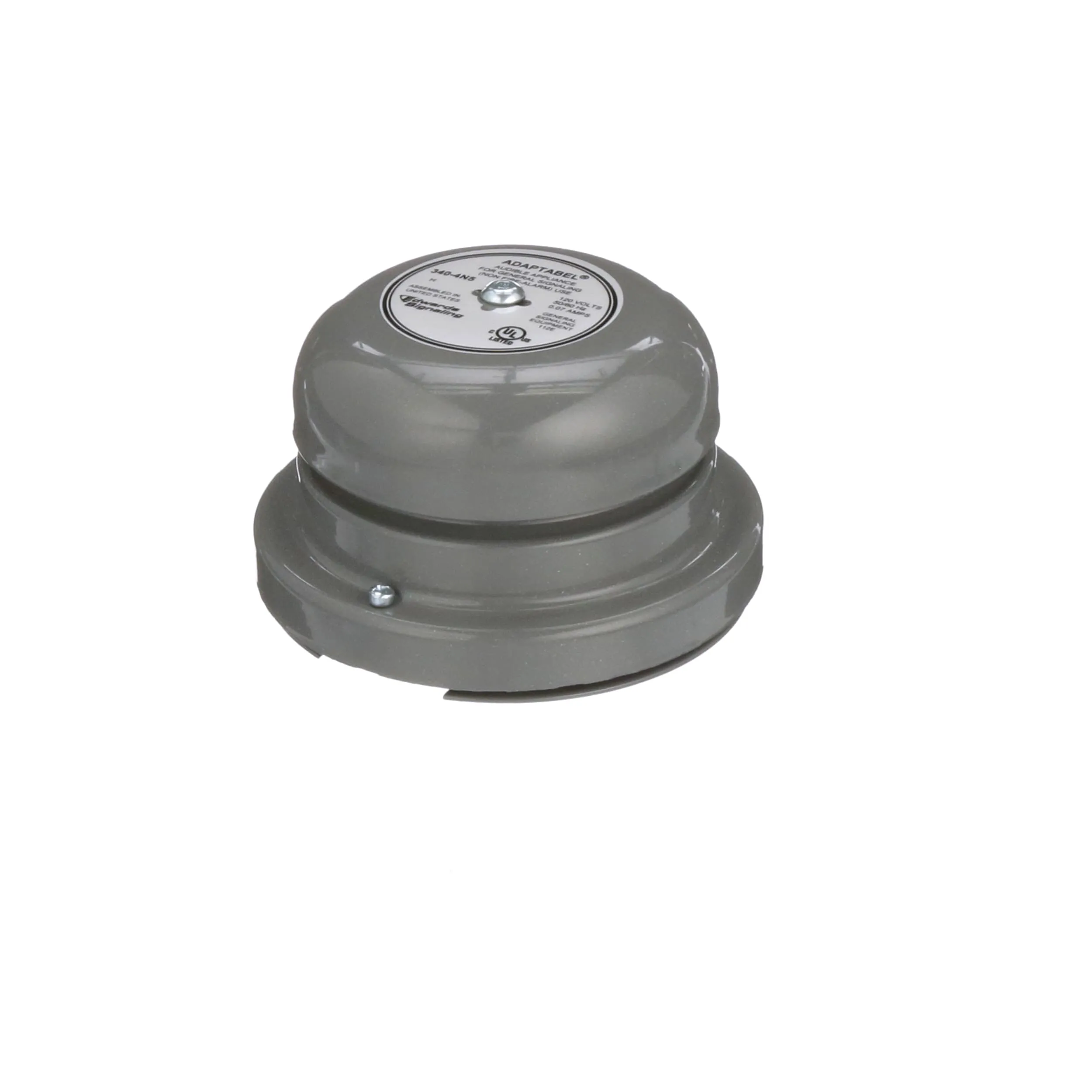

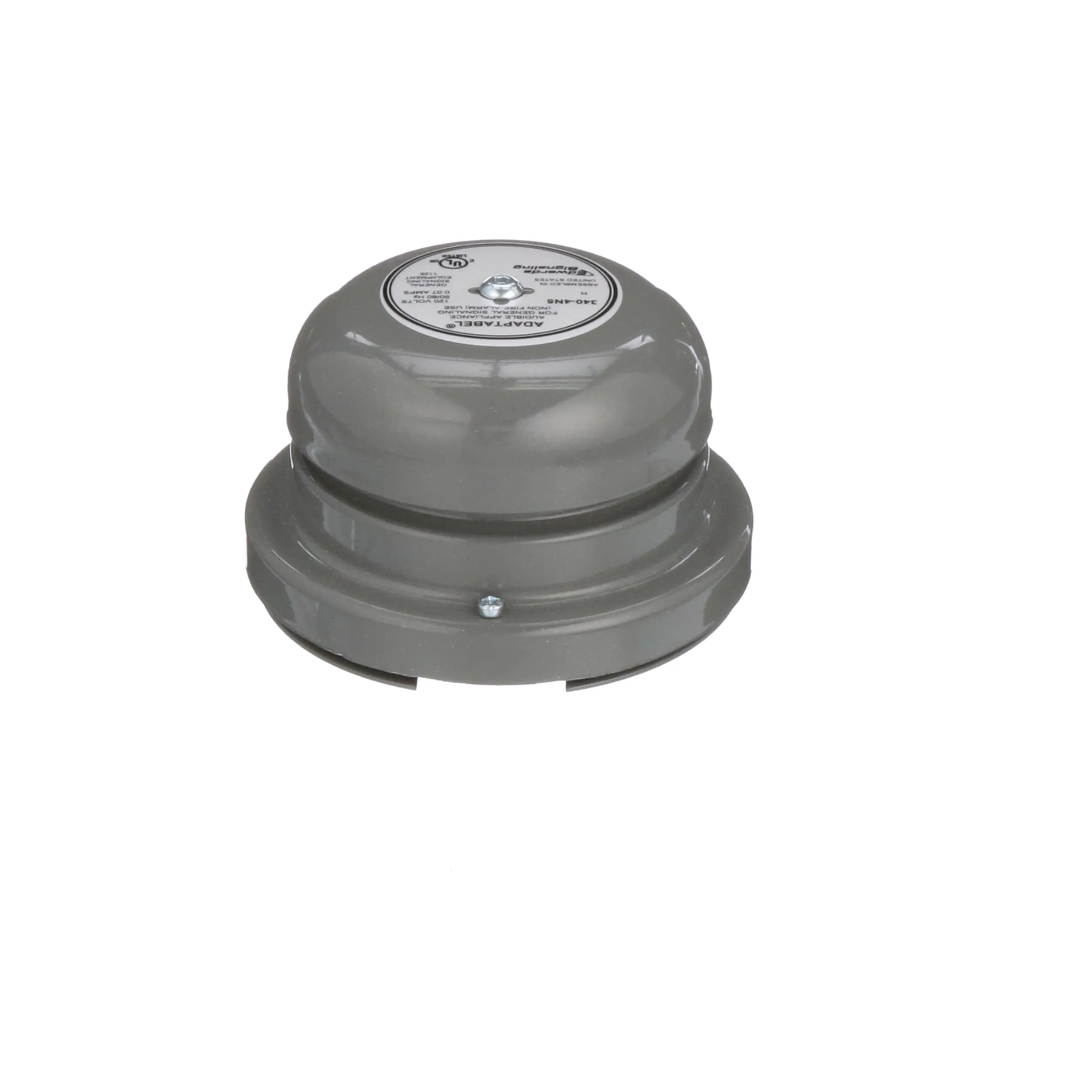

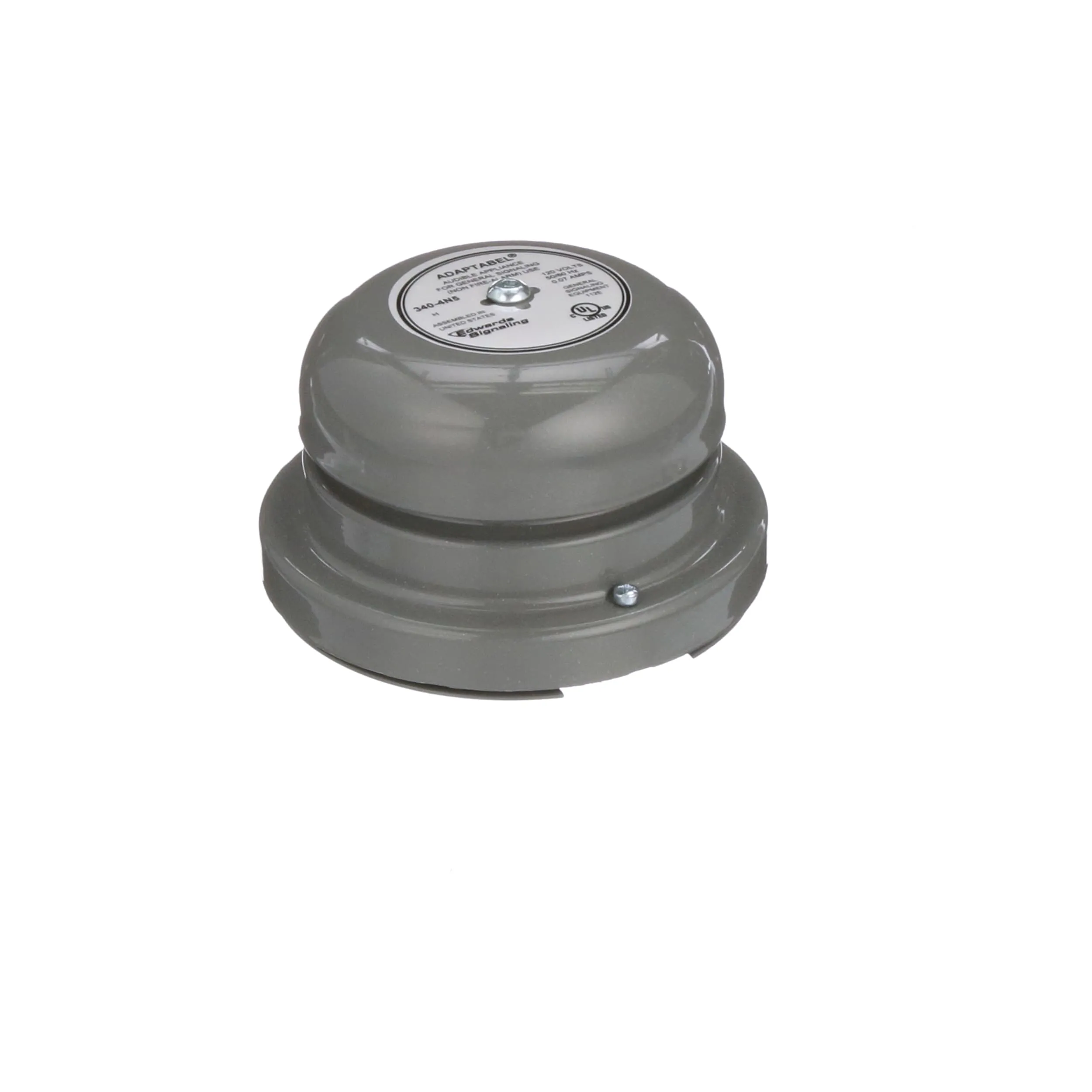

Adaptable® Brand 340 Series AC Vibrating Bell
Applications: 4" sizes recommended for quiet office areas; 6" sizes for moderate noise level areas such as general factory areas; 10" sizes for loud areas such as heavy machine shops.
AC vibrating bells produce a long continuous ringing sound. The striker continues to strike the gong in rapid-fire action as long as current is applied. Available with full cast grids and protective grilles. May be weatherproofed with the addition of a weatherproof box.
