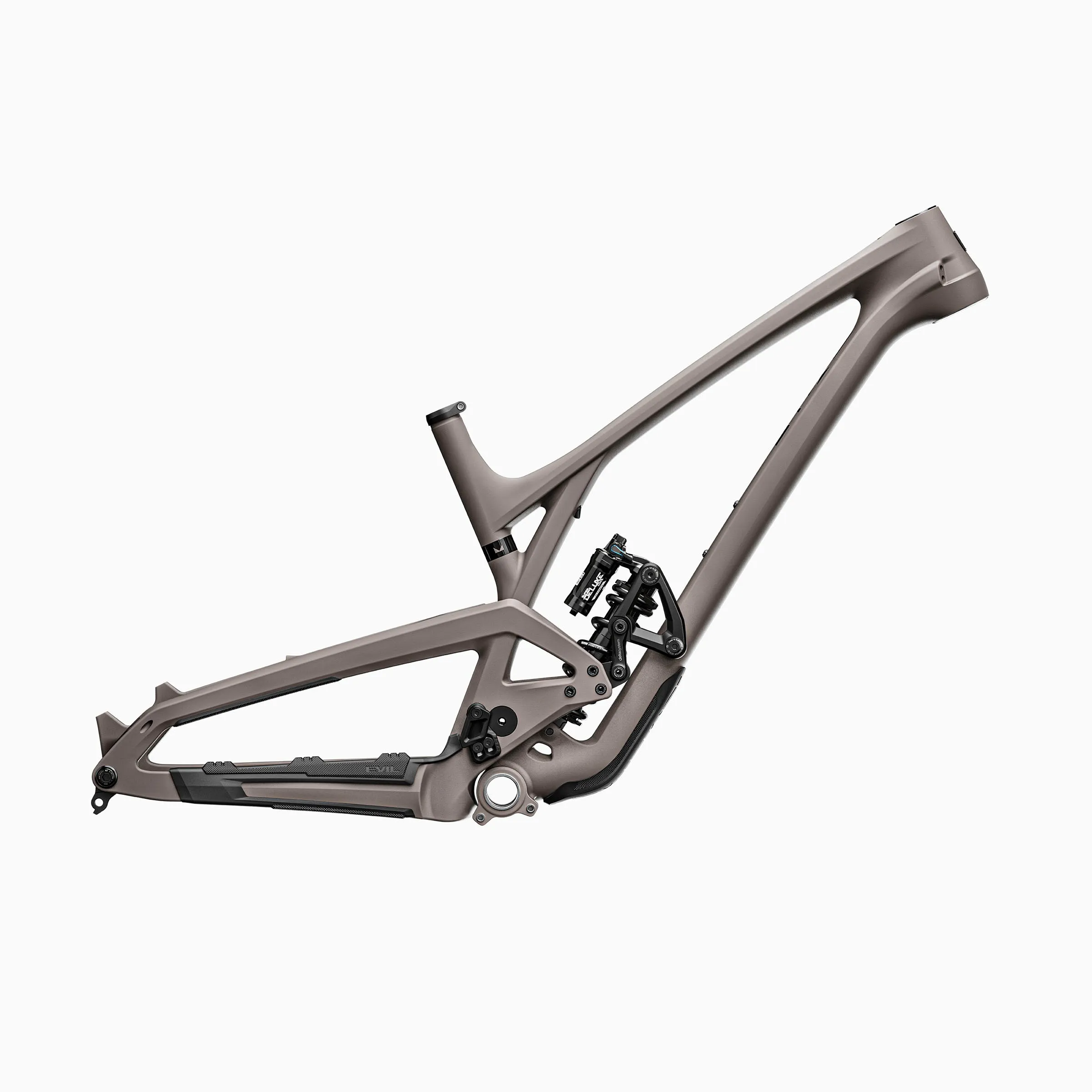

THE LEG POWERED DH LEGEND
A heaped shovel of gravity fills the heart of every Evil machine, and our venerated Wreckoning is best described as “the bike with no speed limit”. This latest iteration of the 29” wheeled 166mm platform comes Lightly Salted, maintaining the geometry and suspension kinematics that riders love and trust on the burly stuff. Whether racing the clock or punching out to hit the trail, this bike is built to send deep and comfortably spin up for another.
ALL NEW COLORWAYS | SRAM UNIVERSAL DERAILLEUR HANGER UPDATED HARDWARE | 55MM-56.5MM CHAINLINE
Specifications:
Frame Specs:
| AVAILABLE SIZES | Large |
AVAILABLE COLORS | Baja Fog, Clay Porter |
| WHEEL TRAVEL | 166mm |
| REAR SHOCK | Rockshox Super Deluxe Coil Ultimate, Trunnion 205x65, ML 320 |
| SHOCK HARDWARE | Trunnion Upper, 20x8mm Lower |
| FORK AXLE TO CROWN | 586mm, Rockshox Zeb 170mm |
| FORK OFFSET | 44mm |
| HEADTUBE | Tapered 1 1/8” – 1 1/2” |
| HEADSET | FSA Integrated Tapered No. 57/68 Upper 44mm Lower 62mm Tapered OD |
| SEATPOST DIAMETER | 30.9mm |
| SEATCLAMP DIAMETER | 34.9mm |
| REAR WHEEL DIAMETER | 29” |
| MAXIMUM REAR TIRE SIZE | 29 x 2.5” (varies by brand) |
| BOTTOM BRACKET SHELL | 73mm Threaded |
| CHAINLINE | 55mm - 56.5mm |
| CHAINGUIDE MOUNT | Evil Chain Guide Upper, ISCG05 Lower |
| MAXIMUM CHAINRING SIZE | 36T Single Ring |
| MINIMUM CHAINRING SIZE | 30T |
| REAR WHEEL SPACING | 157mm x 12mm |
| DERAILLEUR HANGER | SRAM Universal Derailleur Hanger |
| REAR BRAKE MOUNT TYPE | Post Mount 180mm |
| MAXIMUM REAR ROTOR SIZE | 203mm |
