ROLL DESIGN LOBO II FRONT SUSPENSION KIT FEATURES

Patented lower Gull Wing (bent) Arm design (Roll Design built the first ATV bent lower arms in 1988). Allows for shocks with longer shaft travel. This design allows for a low ride height which helps corner stability, without sacrificing the plushness of the ride.

• Motion Ratios are adjusted to Roll design specifications. All motion ratios are linear which improves: braking, weight transfer and corner stability
• Steering is enhanced with the Lobo II kit. Machines have lower ride height, Improved stability over stock, Gives a more precise feel
• Lower control arms are constructed of over-sized 4130 chromoly tubing
• Control arm inboard pivots consist of long wear PFTE composite lined bearings

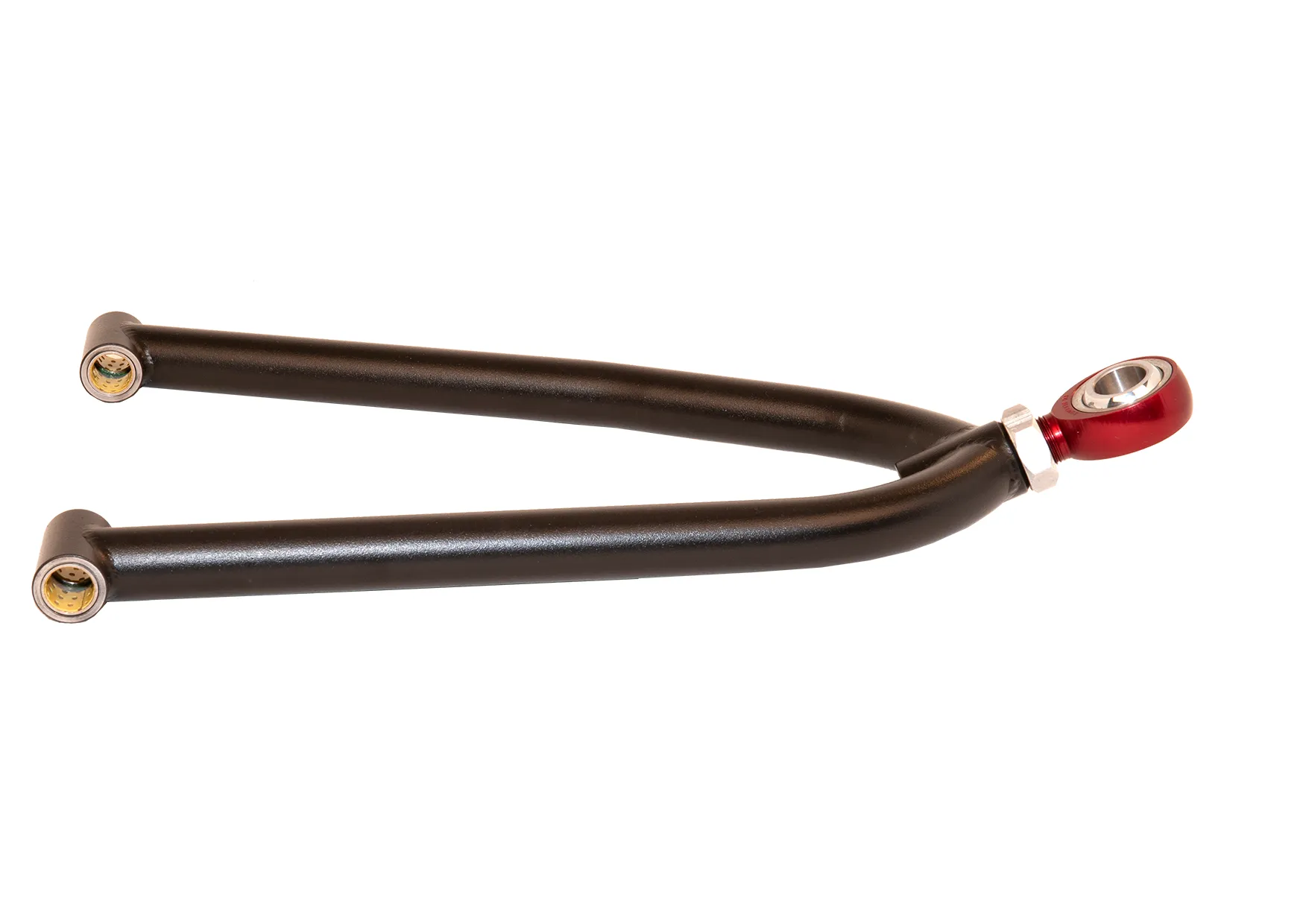

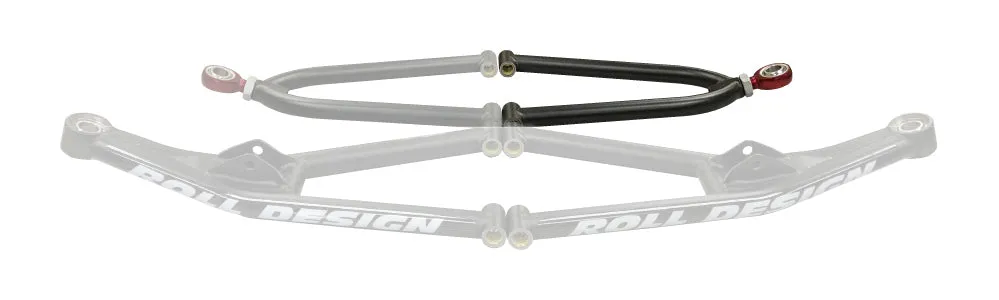

• Upper control arms allow for initial camber adjustment
• Ball joints are a three piece high misalignment design utilizing 17-4 heat treated Stainless Steel components and a long wearing replaceable spherical bearing
• Lower ball joint housing is integrated into the control arm eliminating any bending or shear points
• Upper ball joint is encapsulated in 7075 high strength lightweight aluminum body
